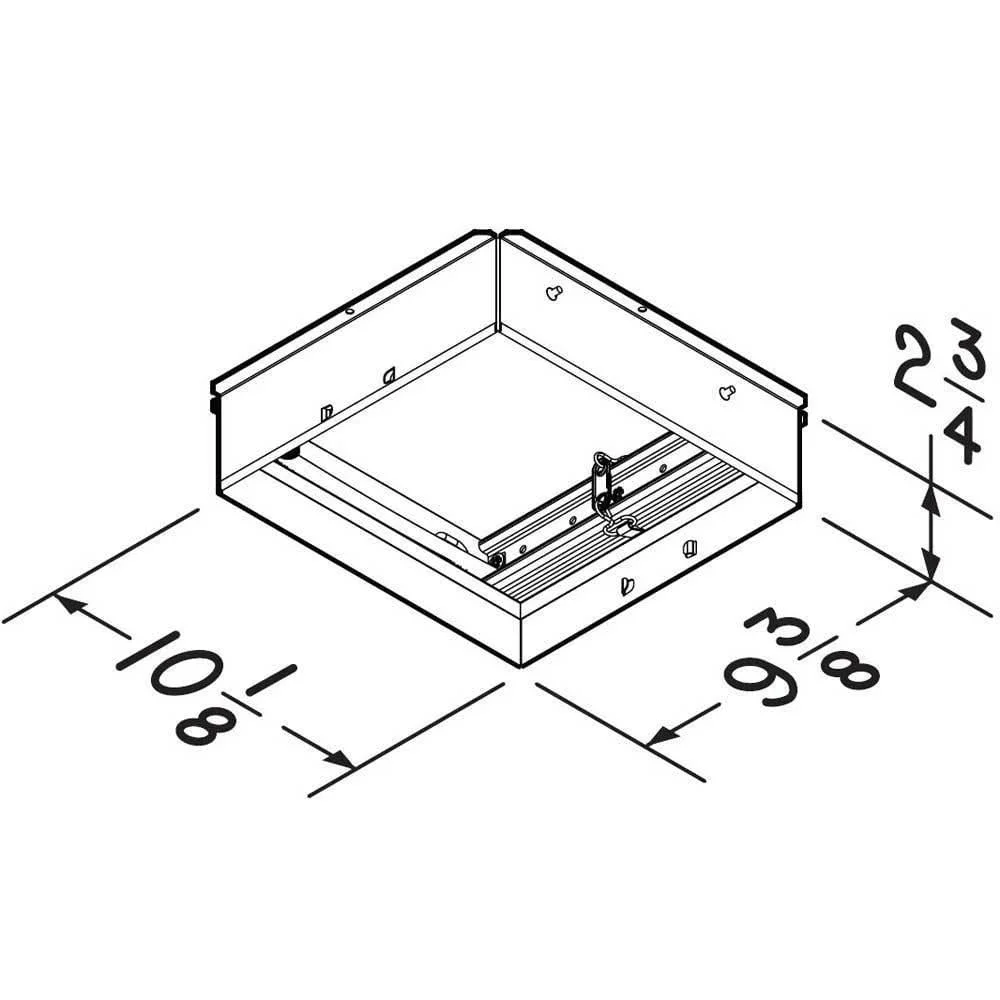

lessDimensions:
9.38" W
×
10.13" D
×
2.75" H
| Width (side to side) | 9.38 |
| Depth (front to back) | 10.13 |
| Height (bottom to top) | 2.75 |
Disclaimer
Description
moreBroan® Radiation Damper
The Broan-NuTone® RDMWT Radiation Damper prevents the rapid spread of fire to other areas of a home, during a house fire. Many codes require that exhaust fans installed in multi-family homes, with fire-rated ceilings, must be protected by radiation dampers. When the air temperature passing through the damper exceeds 165°F, the fusible link melts, triggering the thermal fabric to automatically close across the damper. Airflow is interrupted by a flame and heat barrier, preventing the rapid spread of fire to other areas.
The Broan-NuTone® RDMWT Radiation Damper prevents the rapid spread of fire to other areas of a home, during a house fire. Many codes require that exhaust fans installed in multi-family homes, with fire-rated ceilings, must be protected by radiation dampers. When the air temperature passing through the damper exceeds 165°F, the fusible link melts, triggering the thermal fabric to automatically close across the damper. Airflow is interrupted by a flame and heat barrier, preventing the rapid spread of fire to other areas.
- Stainless steel closure springs
- Includes light jumper cable
- Galvanized steel frame
- Meets or exceeds NFPA-90A
- UL Classified (UL-555C)
- High temperature, non-asbestos, reinforced fiber thermal fabric
- 165°F fusible link
- For use in 1, 2 and 3 hour rated floor-ceiling and roof-ceiling constructions
- Separate outer frame allows complete fan and damper serviceability without disturbing the surrounding ceiling material
- For use with fans and ENERGY STAR qualified fan/lights
Rebates
view available rebates
Broan® Radiation Damper
Accessories Collection
Specifications
Specifications
Product
Accessory Type
Air Conditioning Accessory
Accessory Type
- Air Conditioning Accessory
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
2.75" H
Height (bottom to top)
- 2.75" H
Width (side to side)
9.38" W
Width (side to side)
- 9.38" W
Depth (front to back)
10.13" D
Depth (front to back)
- 10.13" D
Features
Stainless steel closure springs, Includes light jumper cable, Galvanized steel frame, Meets or exceeds NFPA-90A, UL Classified (UL-555C), High temperature, non-asbestos, reinforced fiber thermal fabric, 165°F fusible link, For use in 1, 2 and 3 hour rated floor-ceiling and roof-ceiling constructions, Separate outer frame allows complete fan and damper serviceability without disturbing the surrounding ceiling material, For use with fans and ENERGY STAR qualified fan/lights
- Stainless steel closure springs
- Includes light jumper cable
- Galvanized steel frame
- Meets or exceeds NFPA-90A
- UL Classified (UL-555C)
- High temperature, non-asbestos, reinforced fiber thermal fabric
- 165°F fusible link
- For use in 1, 2 and 3 hour rated floor-ceiling and roof-ceiling constructions
- Separate outer frame allows complete fan and damper serviceability without disturbing the surrounding ceiling material
- For use with fans and ENERGY STAR qualified fan/lights
